So, I know it’s not EXACTLY food related… but tiling an awesome back splash is KITCHEN related, and tutorials are *almost* recipes, right? I swear this is actually a food blog…!

Remember back when I debuted the photos of our finished bathroom renovation, with Fibonacci sequence tiled into the main wall, and a few digits of pi tiled behind the toilet? It was a last minute design idea, and it was to be a subtle, small nod to our nerdiness.

Well, one thing led to another… and now we have 159 digits of pi tiled into our kitchen backsplash. If you follow me on Twitter, you’re probably sick of hearing about it by now… but I not only have the final photos, I have a tutorial on how to do it yourself!

Now, I know we went sort of nuts with the pi day celebrations last year… but this really takes it to a whole new level. We’re happy to have this in place in time for this year’s party, but… damn. No idea how we’ll top this for Pi day 2013. Or, you know, 2015, when we should really go all out! (3/14/15!)

I guess the one good thing about getting your house destroyed by a tornado is that it forces you to get off your butt, make a bunch of design decisions and actually DO renovations on the house, rather than just talk about “someday, it would be cool if…”.

We still have quite a ways to go, but the house really is looking great. We won’t have cabinet faces and doors for a WHILE – still waiting for the lumber we had milled to be properly dried, so we can build all that. Oh well. I think the fact that the black walnut that destroyed our kitchen is being used to rebuild it is badass enough to be worth the wait! Anyway…

Now, I realize that the odds of anyone else tiling pi into their kitchen is fairly slim… but this tutorial is also good for anyone who wants to put in a new backsplash, but with a personal twist. The photos and specifics here are for pi, but the principles can apply to any design you can think up, with 2″ x 2″ tiles.

For instance..

- Using two favorite colors to create a custom checkerboard design, should you not be happy with the small amount of pre-fab options out there.

- If you look at the tiles as “pixels”, you can do pretty much anything you can come up with that is 9-10 squares tall, by however long you want.

- Tetris!

- Music fans or musicians could make an amazing “equalizer” type design!

I can’t tell you how rewarding it is to look at a finished, completely custom backsplash, and know that it is YOURS… and it wasn’t the difficult! On to the tutorial….

designing a custom tile backsplash

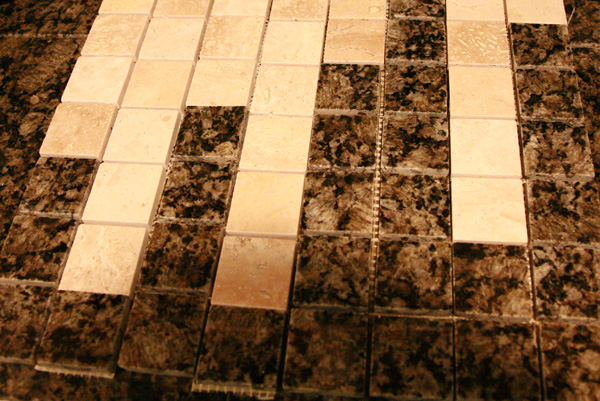

Decide on your design and color scheme. For us, we wanted to tile as many digits of pi as would fit around the areas requiring backsplash. The counters were a green granite, so we wanted the matching green granite 2″ tiles to extend upward from the counter, each vertical bar representing a digit of pi. The void space above each digits bar would be a contrasting color tile – we finally settled on a sand colored travertine tile.

Measure the area of your backsplash, both the total length, and the approximate height. Use this information to calculate how many tiles you will need. Buy em. Try not to have a heart attack at the price.

designing a custom tile backsplash

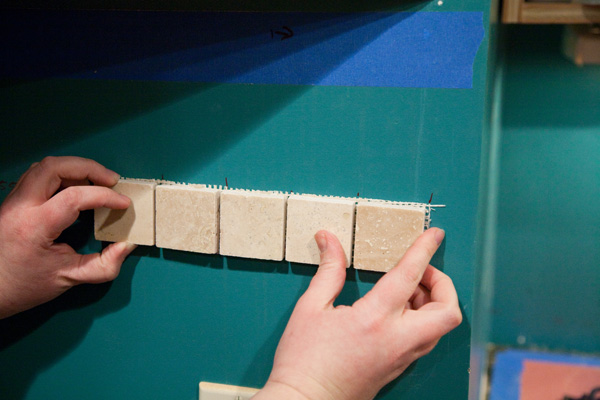

Cut one of the pieces of tile mesh – usually 6 tiles by 6 tiles, glued to a mesh backer – and use it to measure out where everything will be going. Start at the edge of wall you want your design to begin, make a tck on the wall between each tile. When you come to the end of one row, make a tick at the edge of the final tile, and reposition the strip to allow for the appropriate space in between – 1/8″, in this case.

When you come to corners, figure out how you want the tile to lay, and account for that when making your ticks.

designing a custom tile backsplash

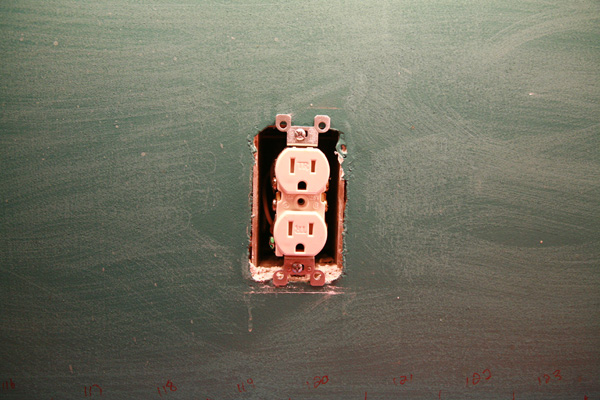

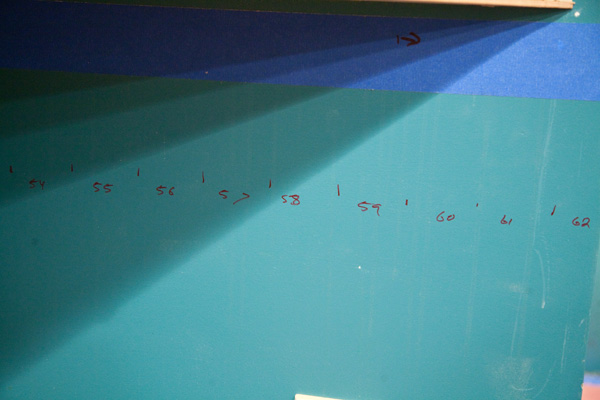

Due to the nature of our design, I numbered each tile space, so I’d know which digits of pi went where. (Not the digits themselves, just the digit position.).

designing a custom tile backsplash

Write those down! For instance, the wall to the left of our stove would be 1-27 digits of pi, the center back wall would be digits 28-47, and so on.

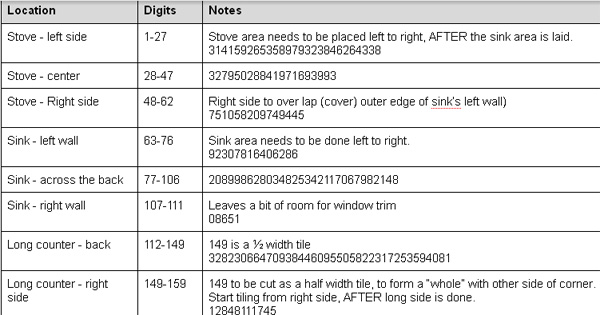

I transferred the digist positions – as well as the actual digits that will be represented – into a table, along with any notes I felt I needed about the locations.

designing a custom tile backsplash

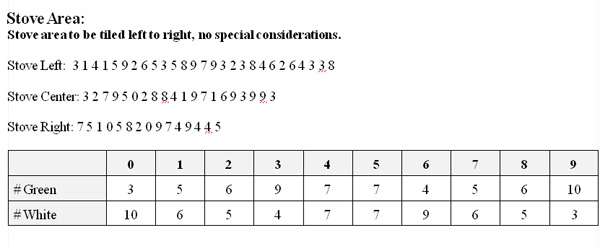

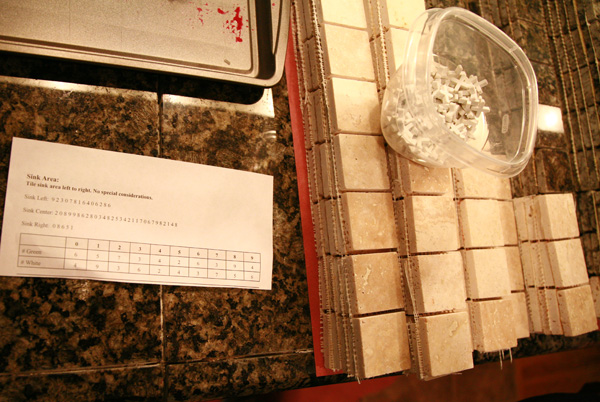

I created another document where I not only listed the digits that would be on each wall, in order – I counted the number of times each digit showed up in that wall area, and created a chart.

For our purposes, our main design was 9 blocks tall. 1 green tile = “1″, two tiles = “2″, and so on. No greens = “0″. Once I inputted the needs for green tiles, I figured out how many beige tiles I would need to complement. If I had five “Ones” in green, I would need five “Eights” in beige, etc.

designing a custom tile backsplash

Using the chart above, I cut and prepared strips of tiles. Be sure to cut the extra mesh from either side of the tiles, as leaving it there can lead to thicker grout lines. (Tiles for the long counter – 3rd large block of pi – are what’s pictured… NOT the “behind the stove” beginning digits mentioned in the above charts!)

designing a custom tile backsplash

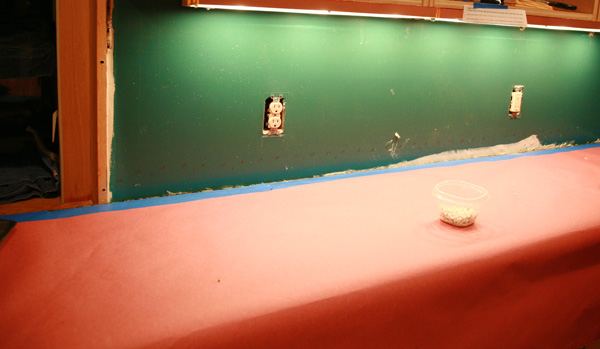

Paper off your work area to protect your counter top.

designing a custom tile backsplash

If your walls are smooth (ours were freshly painted, brand new walls!), scuff them up with a sander, so that the tile adhesive will actually stick to it.

designing a custom tile backsplash

Before mixing up your adhesive (or opening your tub of pre-made!), lay out your tools. We used tiles, tile spacers, a level, and paper towels.

designing a custom tile backsplash

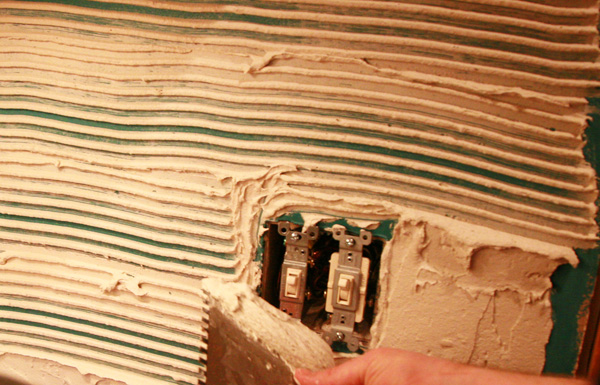

Use a 1/4″ notched trowel to apply tile adhesive to your work surface. Apply it to cover your work space top to bottom, but only a few feet at a time, across the horizontal. You’ll be adding your columns one at a time.

designing a custom tile backsplash

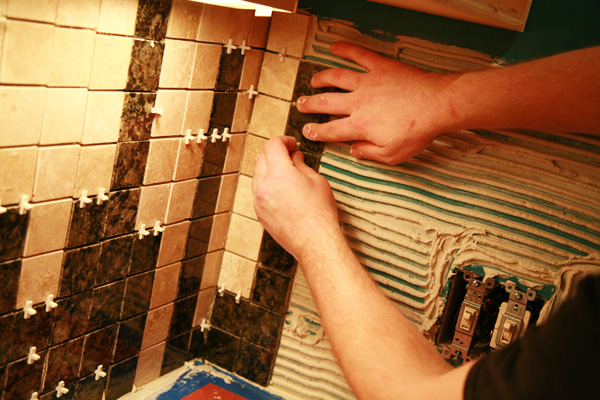

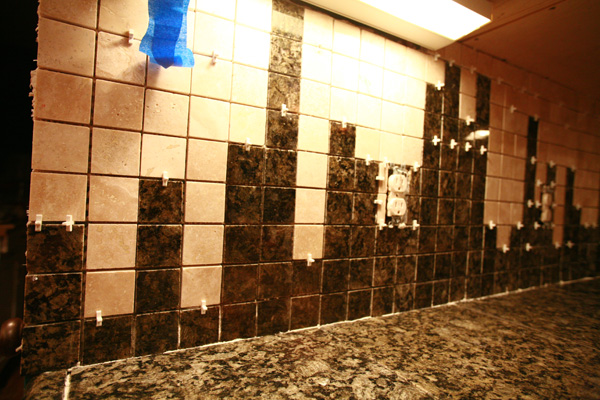

Starting at one side of your work area, apply your first “digit” of pi, with it’s complementing strip of lighter tiles above it. Use tile spacers between the two strips – any tiles that are attached to a strip should remain spaced out automatically.

Use a level to check that your strip is perfectly upright, then lay the next column. You can use spacers between your vertical columns – we mostly eyeballed that.

designing a custom tile backsplash

Continue working along your adhesive-prepared workspace, adding more mortar as needed.

designing a custom tile backsplash

Carefully lay your tiles around any outlets that may be present. We removed all face plates before getting started, and loosened the screwed enough to be able to slip tiles behind each tab. We were lucky that we didn’t have to do much in the way of cutting – but a wet tile saw makes quick work of any cuts that need to be done.

designing a custom tile backsplash
designing a custom tile backsplash

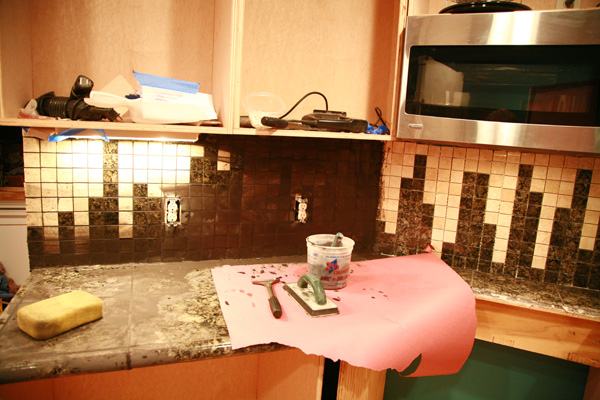

Allow backsplash to dry for 24 hours, leaving all tile spacers in place.

designing a custom tile backsplash

Remove all tile spacers. If there are any globs of mortar sticking out anywhere, use a chisel to carefully remove them.

Wash backsplash, allow to dry. If using granite or another natural stone (rather than glass), apply sealer, following manufacturer’s directions. Allow to dry for 24 hours.

Grout the backsplash.

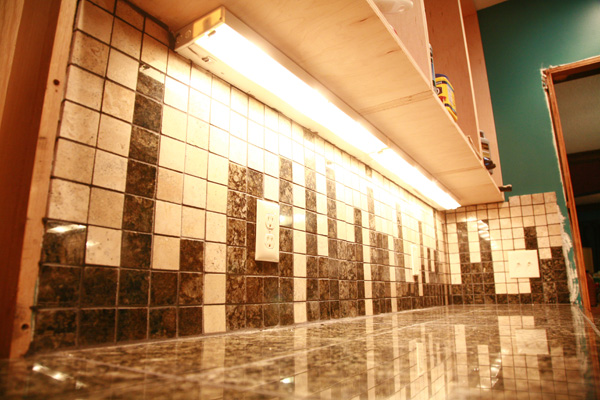

Sit back and enjoy your work, nerd!

designing a custom tile backsplash
designing a custom tile backsplash
designing a custom tile backsplash
